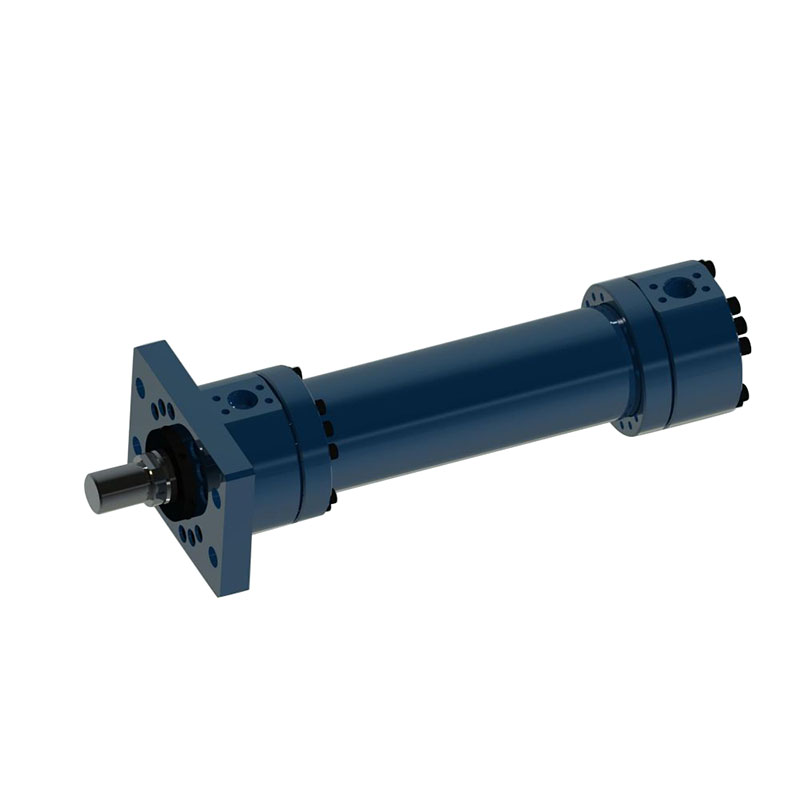

Hydraulischer Zylinder der Injektionsformmaschine

Injektionshydraulikzylinder der Injektionsformmaschine drückt den Injektionsteil mit der Leistung des Hydraulikdrucks und injiziert das geschmolzene Kunststoffmaterial genau und kraftvoll in die Form. Die Leistung des Hydraulikzylinders wirkt sich direkt auf die Qualität und Produktionseffizienz des inspritzgezogenen Produkts aus. Es muss in der Lage sein, hohem Druck zu widerstehen, sich genau zu bewegen und sicher zu arbeiten.

Anfrage absenden

Produktbeschreibung

The injection hydraulic cylinder of injection molding machine: controls the opening and closing of the mold and the ejection of the product.

Specifications:

Bore diameter 90mm～220mm

Rod diameter 50mm～140mm

Stroke≤600mm

Thrust: Maximum 760KN

(Bore diameter 220mm/pressure 10MPa)

Accept customer customized models.

Material:

Cast steel ZG270-500, cast steel ZG310-5, alloy steel 18MnMoNb, 45# steel ingot forging, 42CrMn overall forging

GET A QUOTATION NOW

Oil seal brands:

Japan NOK, Parker oil seal, American MPI, Swedish SKF, Austrian polyurethane oil seal, or customer request.

Advantage:

1. The professional design and production team can design exclusive drawings for customers according to their needs, and start production for them after confirming with them.

2. Any form of customization is acceptable to meet any needs of customers.

3. All products are made of high-strength alloy steel.

4. One year of after-sales service, and after the expiration of the after-sales service, we can continue to provide after-sales service to customers.

5. The customer service team is online 24 hours a day to answer your questions.
